The world of nonlinear optics is on the cusp of a revolution, but one major challenge has been holding it back: weak material responses. However, a team of researchers, including Haoran Li, Fei Huang, and Jingyan Guo, have made a groundbreaking discovery that could change everything. By harnessing the power of the Pockels effect, they've achieved something remarkable - a strong Kerr nonlinearity in a lithium niobate waveguide. This innovative approach has led to an impressive output power of -8.5 dBm and a broad wavelength range of over 116.8nm. But here's where it gets controversial...
The team's secret weapon is the Pockels effect, which enhances the material's nonlinear refractive index. This allows for efficient four-wave mixing, a process that has traditionally been limited by weak material responses. By overcoming this hurdle, they've opened up a world of possibilities for applications like spectroscopy, optical amplification, and advanced wavelength conversion technologies.
And this is the part most people miss: the researchers have also found a way to mimic four-wave mixing by combining Second Harmonic Generation (SHG) and Difference Frequency Generation (DFG). This clever trick boosts efficiency without relying on the typical, weaker FWM process. By carefully designing a periodically poled lithium niobate (PPLN) crystal, they've created a situation where SHG and DFG occur sequentially, effectively replicating FWM.
The study provides a comprehensive theoretical framework for understanding and modeling FWM. It details the equations that describe the behavior of four interacting waves, taking into account crucial factors like phase matching, nonlinear refractive index, and spatial overlap. These simplified expressions for output power and conversion efficiency offer a clear understanding of FWM and its underlying principles.
The key to their success lies in the use of periodically poled lithium niobate (PPLN), which allows for quasi-phase matching and efficient frequency conversion. Phase matching ensures that the interacting waves remain in sync, maximizing efficiency. SHG combines two photons to create a new photon with twice the frequency, while DFG combines two photons to create a new photon with a frequency equal to the difference between the input frequencies.
The nonlinear refractive index, a measure of how a material's refractive index changes with light intensity, is the driving force behind these nonlinear effects. This research provides a valuable framework for optimizing nonlinear optical processes in PPLN crystals, with applications in laser technology, optical communications, and spectroscopy.

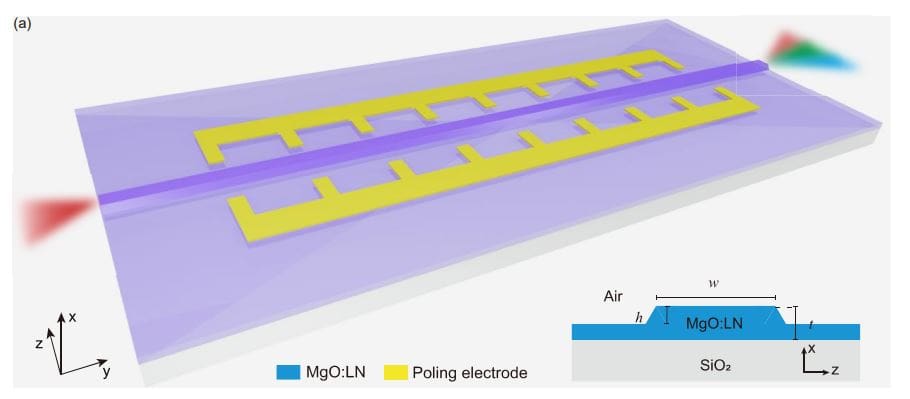

The team's technique for enhancing nonlinear optical effects in thin-film lithium niobate waveguides is a game-changer. By meticulously fabricating waveguides with precise thickness and using advanced techniques like electron-beam lithography and evaporation, they've overcome the limitations of low nonlinear coefficients. The resulting chips, optimized for light coupling with lensed fibers, demonstrated effective four-wave mixing and cascaded effective four-wave mixing processes.
The maximum output power of -8.5 dBm across a broad wavelength spectrum exceeding 116.8nm is a testament to their success. Analysis revealed a substantial effective nonlinear refractive index, a significant enhancement compared to the intrinsic value. The pump and signal waves, generated by tunable continuous-wave laser sources and amplified using erbium-doped fiber amplifiers, were combined and aligned into fundamental TE modes to maximize the utilization of the lithium niobate's second-order nonlinear coefficient.
Further experiments assessed the integrity of wavelength conversion by encoding high-speed data onto an optical carrier and then combining it with a pump wave and coupling it into the periodically poled waveguide. The resulting idler wave, after being filtered and amplified, demonstrated excellent signal maintenance, confirming the effectiveness of the process.
This breakthrough in enhancing nonlinear optical effects within thin-film lithium niobate waveguides is a major step forward. By inducing strong Kerr nonlinearity using the Pockels effect, scientists have overcome the limitations imposed by low nonlinear coefficients. Experiments have successfully observed effective four-wave mixing and cascaded effective FWM processes, generating a maximum output power of -8.5 dBm across a broad wavelength spectrum.
Analysis of the induced nonlinearity revealed a substantial effective nonlinear refractive index of 2.9×10-15 m2/W, an enhancement factor of 1.6×104 compared to the intrinsic nonlinear refractive index of lithium niobate. This remarkable increase in nonlinearity is achieved through the cascading of second-order nonlinear processes, effectively mimicking the behavior of a Kerr medium.
Further experiments confirmed the preservation of signal integrity after on-chip effective FWM conversion, demonstrating a flat optical-to-optical response across a broad radiofrequency spectrum. Simulations and experimental results confirm the efficiency of the cascading process, involving second harmonic generation and difference frequency generation, in converting pump and signal waves into idler and conjugate waves.
This innovative approach not only enhances the effective Kerr nonlinearity but also opens up a world of possibilities for applications in spectroscopy, parametric amplification, correlation studies, and advanced wavelength conversion technologies. The broadband nature of the induced nonlinearity further expands the versatility of this technique, making it a game-changer for a wide range of photonic applications.
The research team's achievement in inducing strong Kerr nonlinearity through the Pockels effect is a significant advance in nonlinear photonics. By demonstrating effective four-wave mixing and cascaded effective four-wave mixing processes, they've achieved a maximum output power of -8.5 dBm across a broad wavelength spectrum. Analysis reveals an impressive enhancement factor of 1.6×104 for the effective Kerr nonlinearity, measured at 2.9×10-15 m2/W.
This research paves the way for exciting developments in the field of nonlinear optics and has the potential to revolutionize photonics.
🗞 Read more about this groundbreaking discovery:
ArXiv: https://arxiv.org/abs/2512.10462
